Woodpecker Implant X

Woodpecker Implant X

Regular price Rs. 95,000.00
Regular price Rs. 105,000.00 Sale price Rs. 95,000.00
9% off Sold out
Tax included. Shipping calculated at checkout.

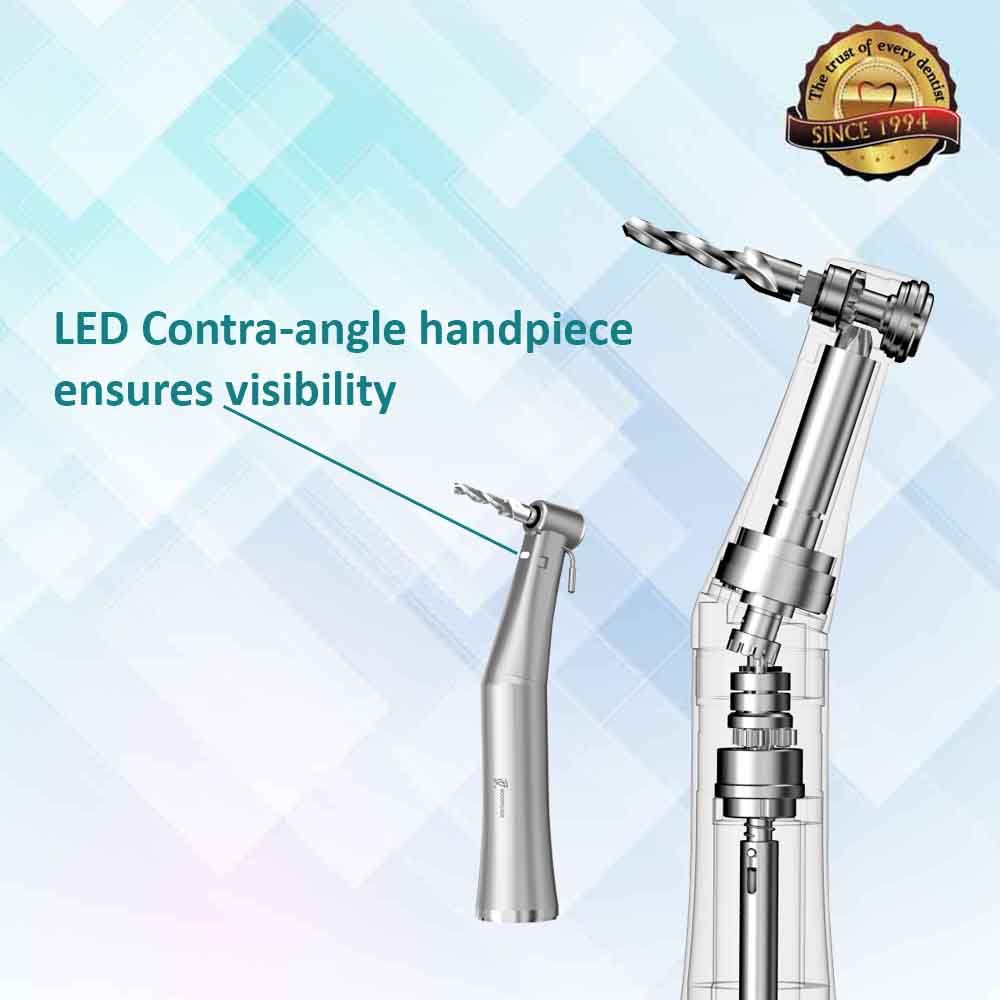

  • Implant contra-angle handpiece and the motor increases the dentist's comfort by reducing hand fatigue.
  • Noiseless high-quality Swiss motor imported that is comfortable for the patient and reduces anxiety.

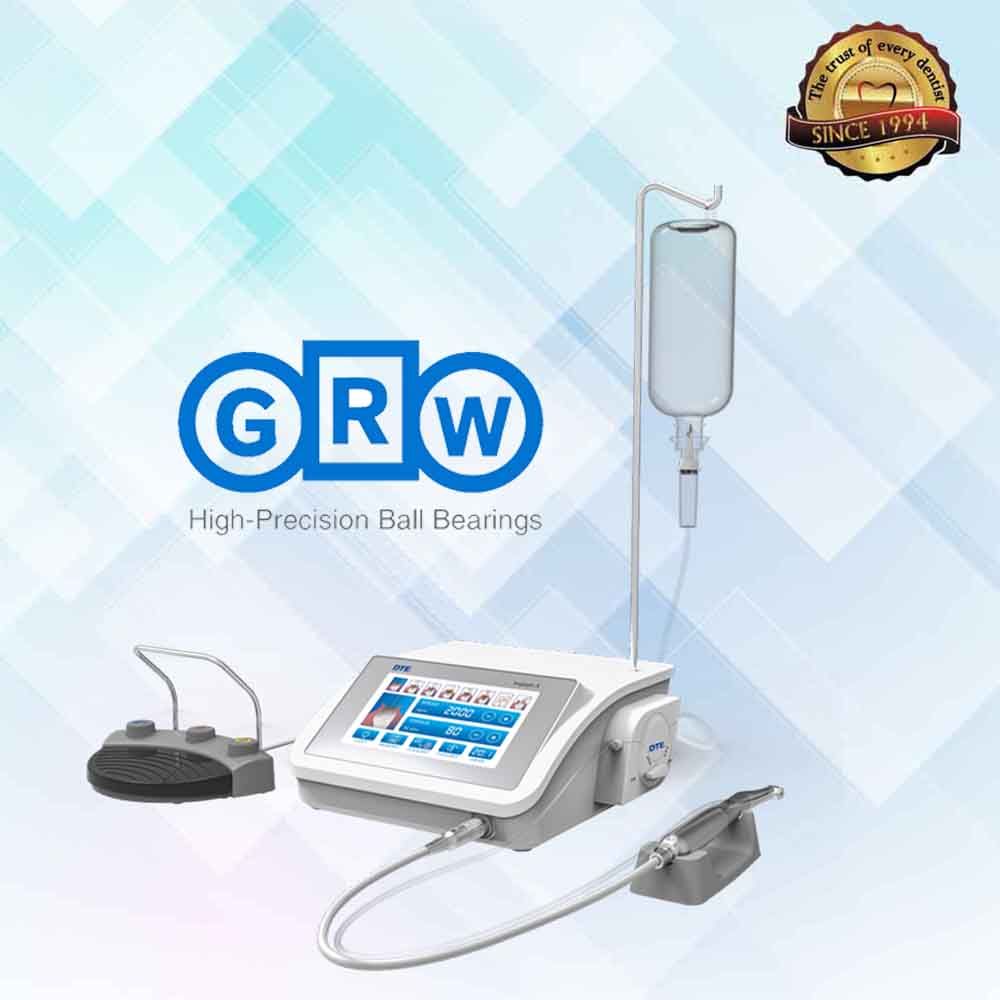

  • Imported GRW Ball Bearings from Germany increased the efficiency & durability of the contra-angle handpiece.

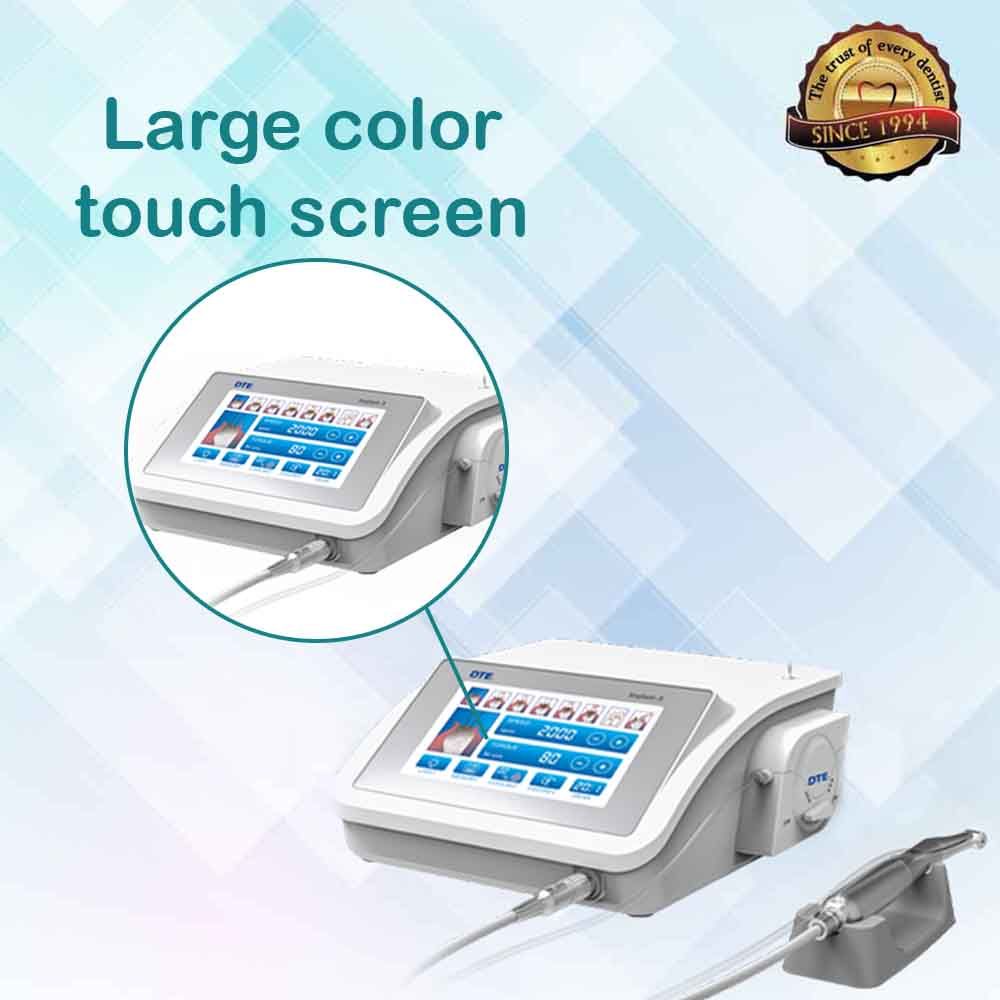

  • Large 7” colored touch screen with glass interface for clear visibility on the screen during an oral surgical procedure.

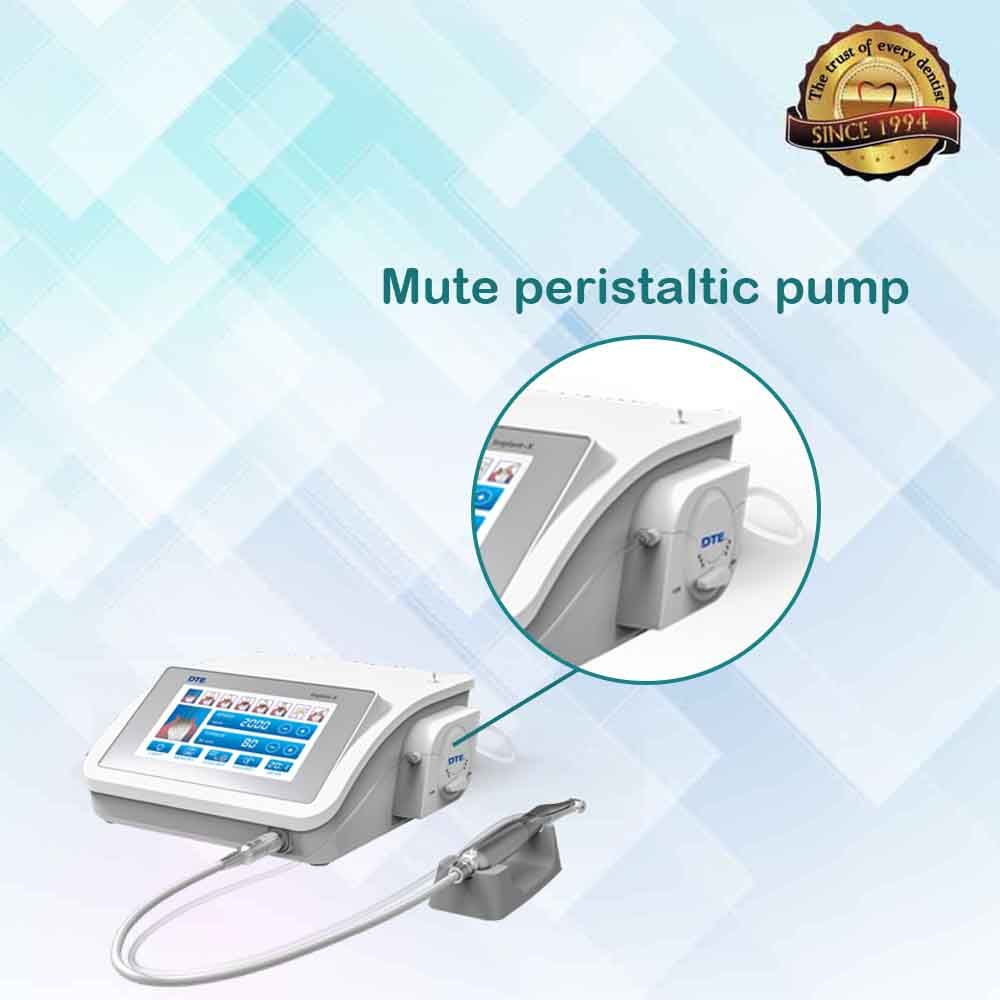

  • External mute water peristaltic pump that is compatible with disposable water tubing.

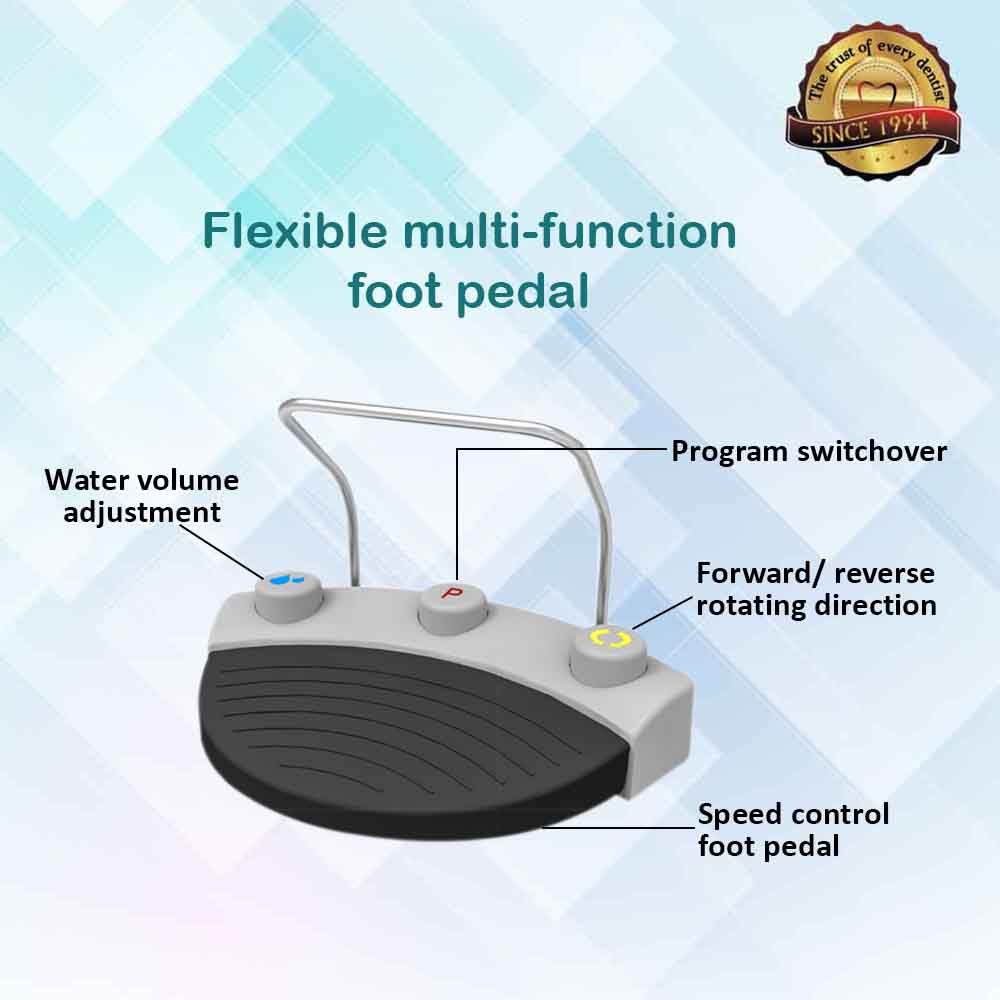

  • Multi-functional foot control to allow the dentist for aseptic operations.
  • 8-step guiding tool for easy operation by the dental professional.

Uses of Woodpecker Implant X:

It is used for placing dental implants in the alveolar bone of the maxilla and mandible providing the dentist a controlled speed and torque to increase the accuracy.

  • External mute water peristaltic pump that is compatible with disposable water tubing's.
  • Multi-functional foot control to allow the dentist for aseptic operations.
  • 8-step guiding tool for easy operation by the dental professional.
  • A device used for tooth polishing, finishing, trimming, cavity & endodontic biomechanical preparation, etc.
  • Easy control over light, water spray, and forward/reverse function makes it perfect to place dental implants.
  • When the reverse function is active, a beep sound warns the user to take extra precautions.
  • Constant speed and excellent cutting efficiency by using a 1:5 red ring handpiece

Technical Specifications:

  • Both Optic/Non-Optic in the same device (light control on screen)
  • Motor Speed range: 300 – 2,00,000 rpm (differs as per gear ratio)
  • Max handpiece Speed (20:1 gear ratio): 2,000 rpm
  • Torque Range (20:1 handpiece): 5 – 80 Ncm
  • Max Pump Output: 110 ml/min
  • Unit Dimensions: 276mm*267mm*110mm
  • Motor Dimensions: φ 23.4mm*L91mm
  • Motor weight: 140gm
  • Power Supply: AC220V 50/60Hz
  • Available Gears: 20:1, 16:1, 27:1, 1:1, 1:2, 1:3, 1:5

Instructions of DTE Implant X:

Connect the power cable and the foot control cable on the backside of the unit. Connect the motor with the cord to the main unit by matching the red dot on the unit. Place the saline holder on the provided notch and attach the saline bottle. Attach the handpiece with the motor and the saline irrigation tubing with the handpiece through the external pump. Now switch on the device. Choose the program, change the speed and torque as per the implant system (IF REQUIRED), attach the drill and now the unit is ready for implanting procedure.


 Woodpecker Implant Motor Implant - X

  • 1 x Main Unit
  • 1 x Foot Control
  • 1 x Motor With Cored
  • 1 x Handpiece
  • 1 x Handpiece Holder
  • 1 x Bottle Holder Stand
  • 1 x Disposable Water Tubing
  • 1 x Adapter
  • 10 x Tubing Clamps
  • Motor Rolling
