Waldent Wal-Pex 5 Pro Gold

Waldent Wal-Pex 5 Pro Gold

Rs. 11,500.00
Rs. 15,000.00 Rs. 11,500.00
23% off Sold out
Tax included. Shipping calculated at checkout.
Warranty

Description



INDICATION :
  • used for the measurement of pulpitis, pulp necrosis, periapical periodontitis, and tooth length.
 ADVANTAGES :

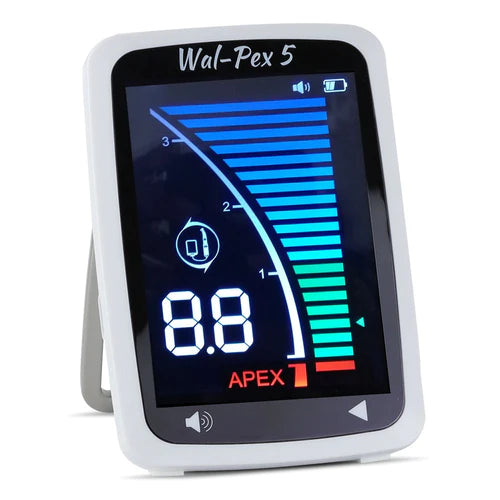

  • Equipped with a bright LCD with color-coded measurements.
  • Displays a clear image.
  • Different colors to indicate the file trajectory.
  • Advanced multiple-frequency network impedance measurement technologies
  • Automatic calibration ensures that the measurements are accurate, Clinical data shows an increase in the accuracy rate by 97.71%
  • High precision of apical foramen localization in wet and dry canals.
  • Automatic calibration ensures stable and accurate measurements.
  • Compact size and stable design allow for excellent flexibility during procedures.



TECHNICAL SPECIFICATION:

 Model  Wal-Pex5
 Dimension  205x185x50mm
 Weight  585gm
 Power Supply  3.7V,800mAh
 Charger Power Supply  AC100-240V
 Frequency  50/60Hz
 Charger Nominal Power Input  5VA
 Electrical Safety Class  Class II
Ambient temperature  10°c/40°c



MAINTENANCE :

OPERATION





PARTS





PROCESSING





CLEANING

ALL

REMOVE DEBRIS UNDER RUNNING WATER ( EXCEPT ELECTRONIC PARTS ), AND THEN WIPE OFF ALL COMPONENTS.







DISINFECTION

MAIN UNIT MEASURING WIRE ADAPTER

WIPE THE COMPONENTS WITH A PIECE OF GAUZE IMPREGNATED WITH ETHANOL( ETHANOL 70–80% vol). MAKE SURE THE COMPONENTS ARE DRY BEFORE NEXT STEP. IF USE OF WASHER – DISINFECTORS, USE ONLY APPROVED DEVICES ACCORDING TO EN ISO15883 AND REFER TO THEIR MANUFACTURER’S INSTRUCTIONS FOR USE.







PACKING

LIP HOOK

FILE CLIP

PROBE

PACK COMPONENTS IN STERILIZATION POUCHES.

USE POUCHES WHICH RESIST TO A TEMPERATURE UP TO 141 °C AND COMPLY WITH EN ISO11607.







STERILIZATION

LIP HOOK

FILE CLIP

PROBE

STEAM STERILIZATION AT 134 °C AT LEAST 4 MINUTES, OR AT 121 °C AT LEAST 35 MINUTES. MINIMUM DRYING TIME AFTER STERILIZATION : 10 MINUTES.







STORAGE

ALL

KEEP THE COMPONENTS IN STERILIZATION PACKAGING IN A DRY AND CLEAN ENVIRONMENT.










  • 100% automatic digital calibration
  • Light body for stable performance
  • Measurement  accuracy up to 97.71%
  • Clear interface
  • Alarm rings when the distance between root canal needle & root canal is less than 2mm
  • Real-time response, double sensibility
  • Clinical data fitting

  • 1 x Main Unit
  • 1 x Measuring Wire
  • 1 x Adapter
  • 1 x Tester
  • 2 x Probe
  • 2 x File clip
  • 2 x Lip hook

Warranty:-

  • Manufacturer/Importer warranty of 12 months as applicable for this product.
