RVG Sensor For High-Resolution Intraoral Imaging
Waldent V-Sensor RVG is an ideal solution for intraoral imaging comes with an easy-to-use sensor that allows users to capture exceptional images quickly and easily. The sensor is packed in a shock-resistant case and silicon padding offers protection from falls.
The tissue is exposed to X-ray radiation and the refracted light is captured by the sensor. The image is processed instantly and converted into digital data using Analog-to-Digital converters. This digital data is sent to the computer where the doctor can view the scan instantly.
CPU |
≥ 1.0GHz |
Memory |
≥ 2GB |
Hard Disk |
≥ 64GB |
Display Resolution |
1024*768 or above |
USB ports |
USB2.0 ≥ 1 |
Operating system requirements
- Microsoft Windows 7/8/10 32-bit/64-bit
Technical Data
Model |
V-Sensor1/ V-Sensor2 |
Dimensions |
19.6cm x 14.4cm x 3.4cm±1cm(Package) |

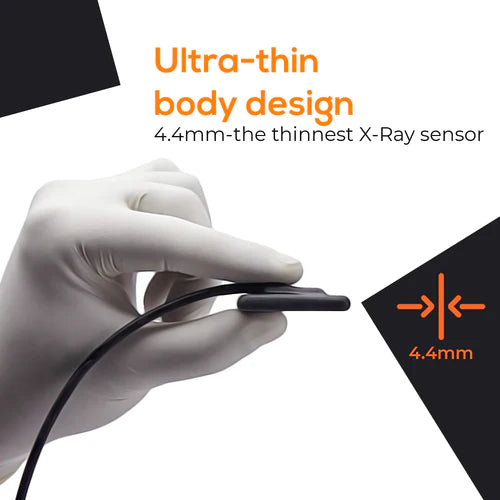

Mechanical Size-1(mm) |
25.4*36.8*4.4 |
Mechanical Size-2(mm) |
32*45*4.4 |
Weight |
0.4kg ± 10% |
Effective imaging area |
V-Sensor1: 20x30mm2 |
V-Sensor2: 26x36mm2 |
|
Power |
1.5W Max |
Sensor technology |
CMOS CsI |
Pixel size |
20um |
Resolution |
Theoretical: 25 lp/mm |
Measured: >12 lp/mm |
|
X-ray energy range |
55~100kV |
Data interface |
USB2.0 |
Electrical safety class |
Depend on the computer terminal that the sensor is connected to. |
Protection against liquid / particular matter |
IP68 (Intraoral part of sensor) |
IPX8 (USB cables) |
|
Anti-defibrillation application part |
No |
AP/APG type equipment |
Non-AP/APG type equipment |
Operating conditions |
Use: in enclosed spaces Ambient temperature: 10°C ~ 35 °C Relative humidity: 20% ~ 90% Operating altitude < 3000m above sea level |
Transport and storage conditions |
Ambient temperature: -20 °C ~ 55 °C Relative humidity: 20% ~ 80%, no condensation Atmospheric pressure: 70kPa~106kPa |

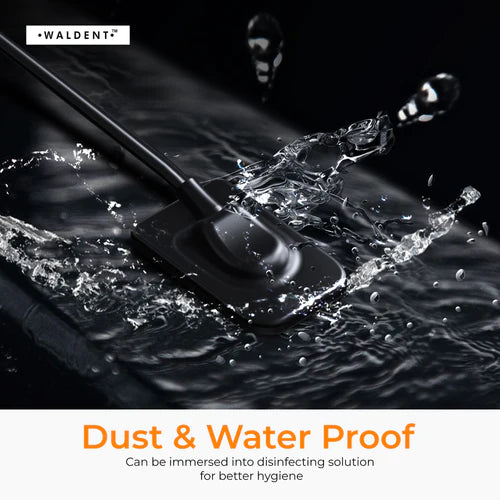

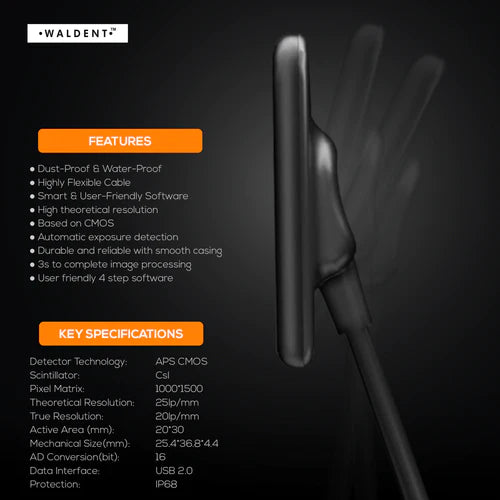

- Dust-Proof & Water-Proof
- Highly Flexible Cable
- Smart & User-Friendly Software

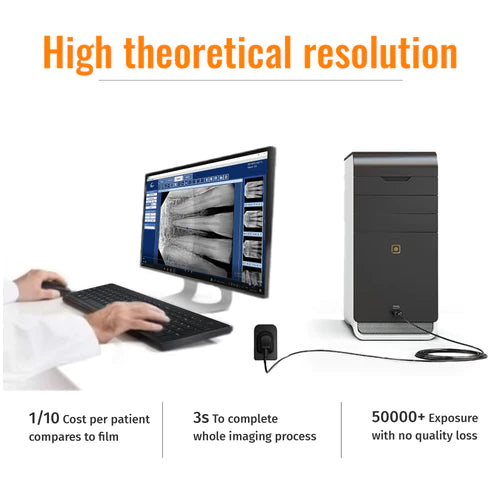

- High theoretical resolution
- Based on CMOS
- Automatic exposure detection
- Durable and reliable with smooth casing
- 3s to complete image processing
- User friendly 4 step software
- 1 x V-Sensor RVG
- 1 x USB Flash Driver
- 1 x Sleeves 50pcs
- 1 x USB Extension Cable
- 1 x Sensor Mounting Bracket
- Manufacturer/Importer warranty of 5 Years as applicable for this product
System requirements:-
OS :- WINDOWS 10
CPU :- INTEL i3 PROCESSOR 10TH GENERATION (MINIMUM)
RAM :- 8 GB DDR4
HARD DISK :- 500 GB HDD (OR) 250 GB SSD
NOTE :- INSTALLATION OF ANTIVIRUS IS NOT ALLOWED / RECOMMENDED.
