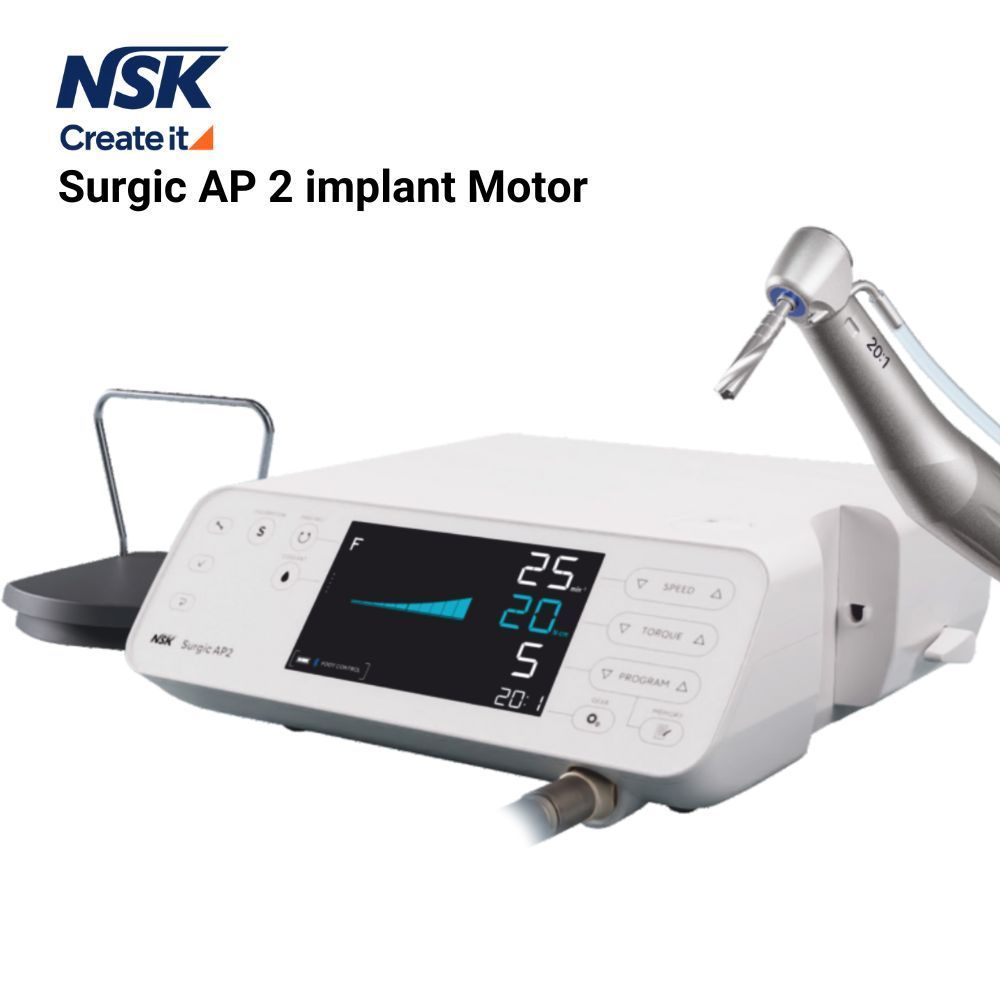

NSK Surgic AP 2 implant Motor

KEY FEATURES

• Improved Operability with Compact Motor:

  – NSK’s proprietary micro-motor technology allows for a significant reduction in motor size.
  – The center of gravity is closer to the handpiece head, enhancing operability and reducing strain during prolonged use.

  Increased Maximum Torque:

  – Maximum torque capability has been increased from 50 Ncm to 80 Ncm, ensuring greater comfort and efficiency during implant treatments.

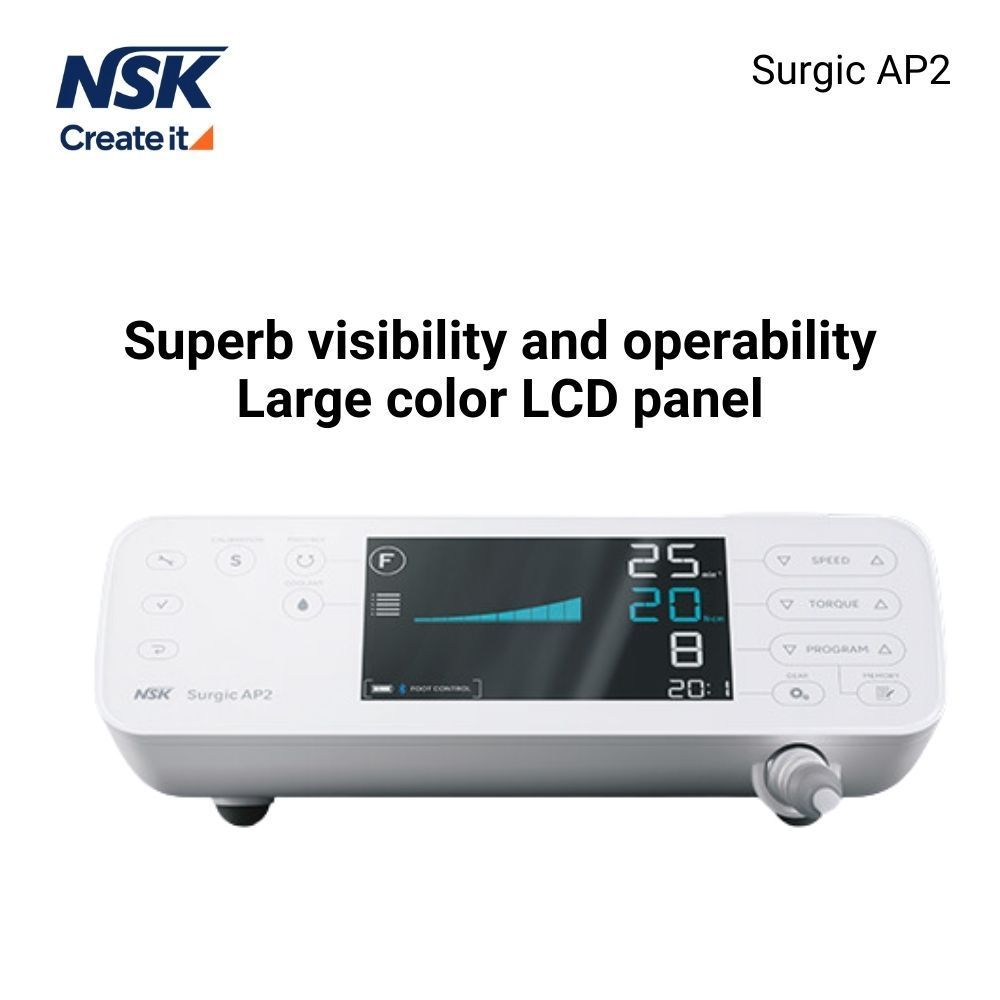

  Large-Color LCD Panel:

  – Features a large, back-lit, high-contrast LCD panel with adjustable brightness levels.
  – Intuitive icons on the display facilitate smooth operation.

  Compact and Powerful Handpiece:

  – The handpiece size has been reduced by 2mm compared to the previous model, improving visibility and accessibility in the oral cavity.
  – The smaller handpiece size minimizes patient discomfort during procedures.

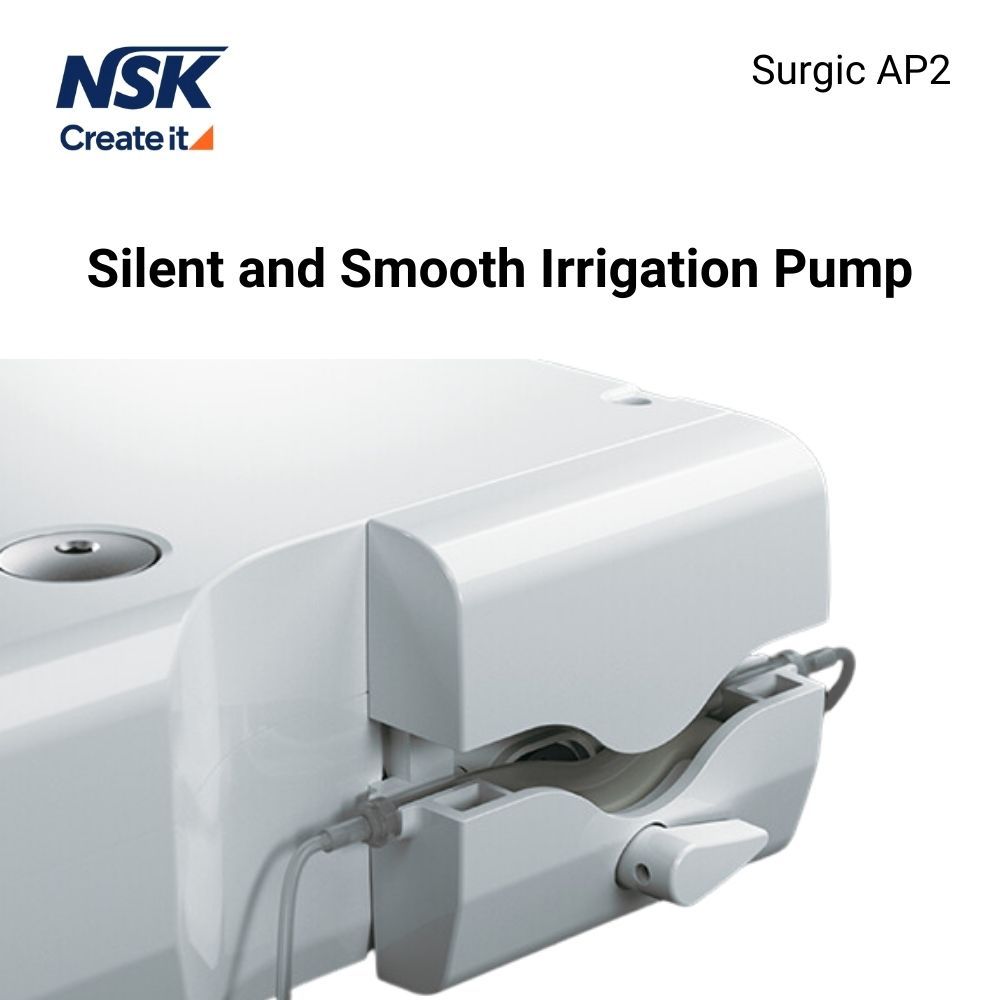

  Silent and Smooth Irrigation Pump:

  – The irrigation pump operates quietly, providing a consistent and steady flow.
  – Simple and straightforward tube setup, integrated seamlessly into the Surgic AP2’s design.

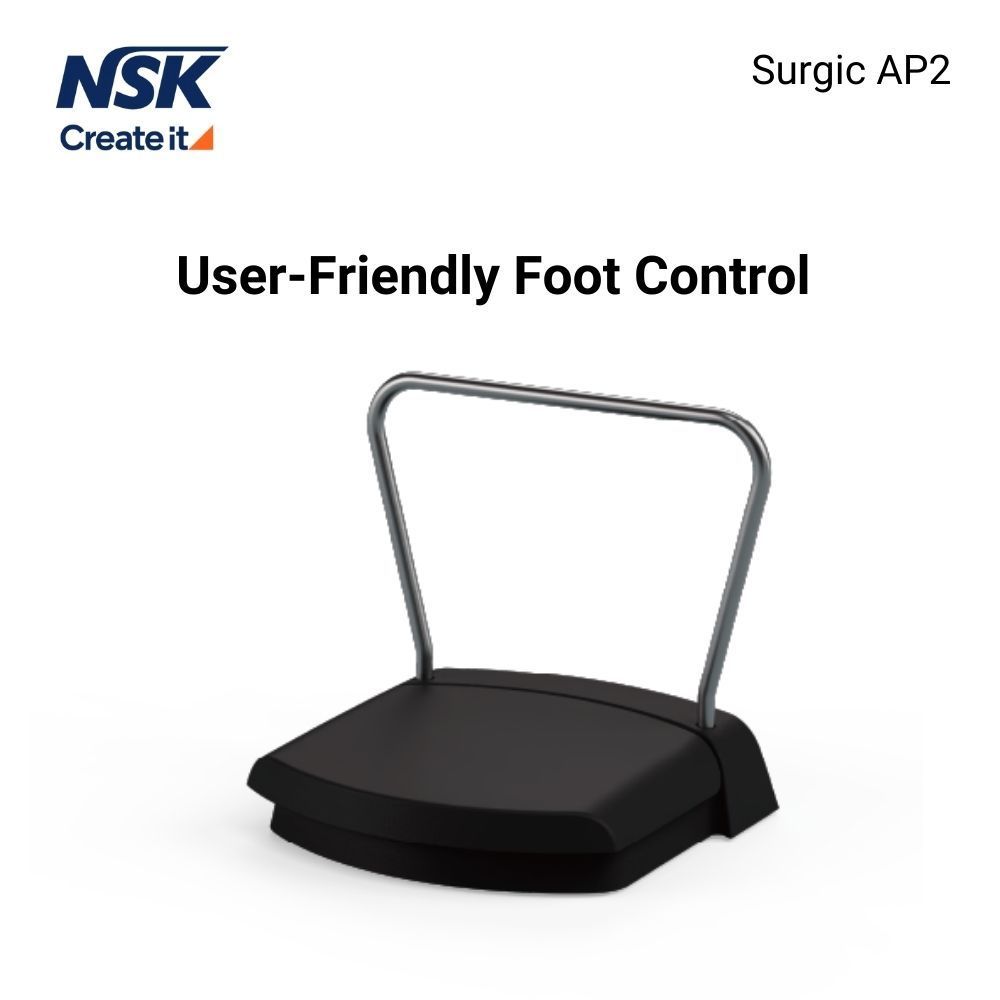

  User-Friendly Foot Control (FC-84):

  – Incorporates wireless connectivity through Bluetooth® for flexible pedal positioning.
  – Lighter design for easy adjustment and repositioning during procedures.

  TECHNICAL SPECIFICATION

  • Power Supply: AC 100-240 V 50/60 Hz Max.
  • Pump Output – 75 mL/min
  • Programs – 8 Programs / Implant Systems
  • Dimensions- W 245 x D 235 x H 90 mm
  • Torque- 5-80 Ncm
  • Motor Speed- 200-40,000 min⁻¹
  • Light Power- (Optic Micromotor) Over 32,000 LUX
  • Foot Control Functions: Coolant Solution Flow Volume Button, PRG(Program) Button, Forward/Reverse Button, Speed Control Pedal
