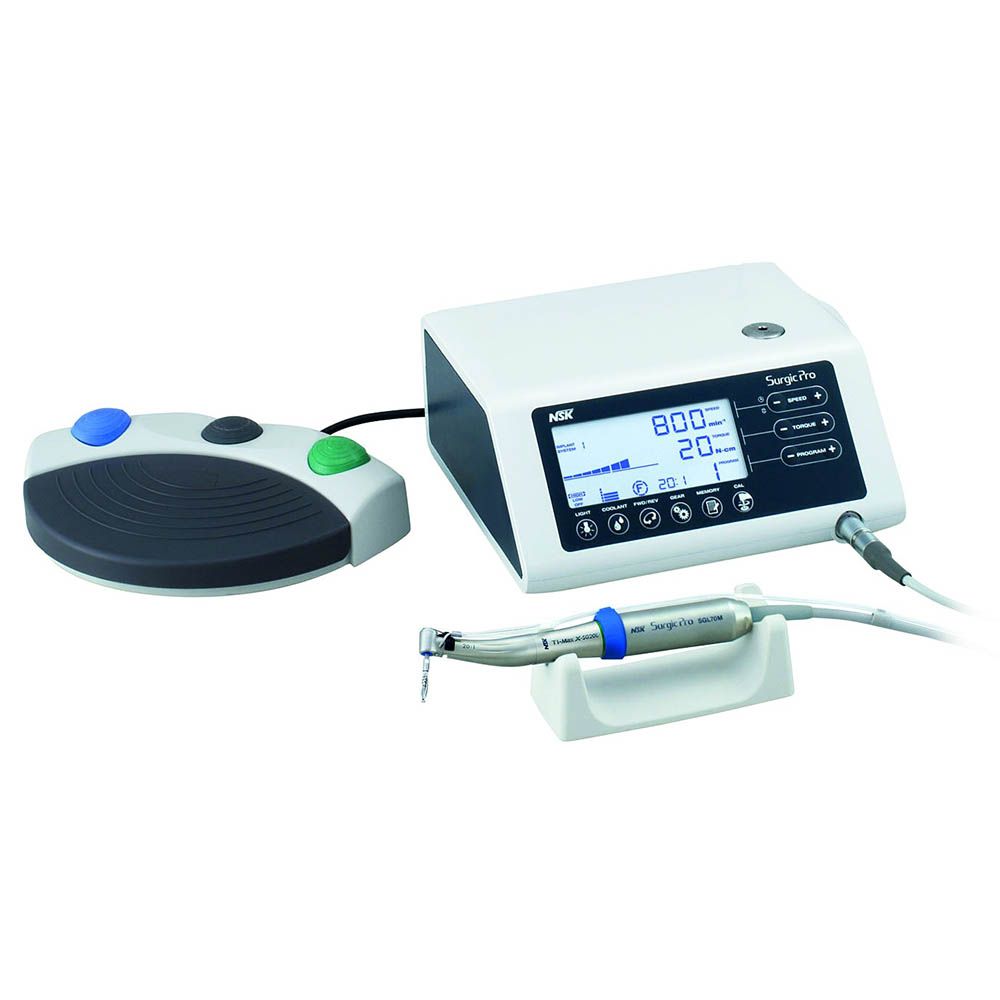

NSK Physiodispenser Surgic Pro Optic Implant Motor

NSK Physiodispenser Surgic Pro Optic Implant Motor

Regular price Rs. 220,000.00
Regular price Sale price Rs. 220,000.00
Liquid error (snippets/price line 91): divided by 0% off Sold out
Tax included. Shipping calculated at checkout.

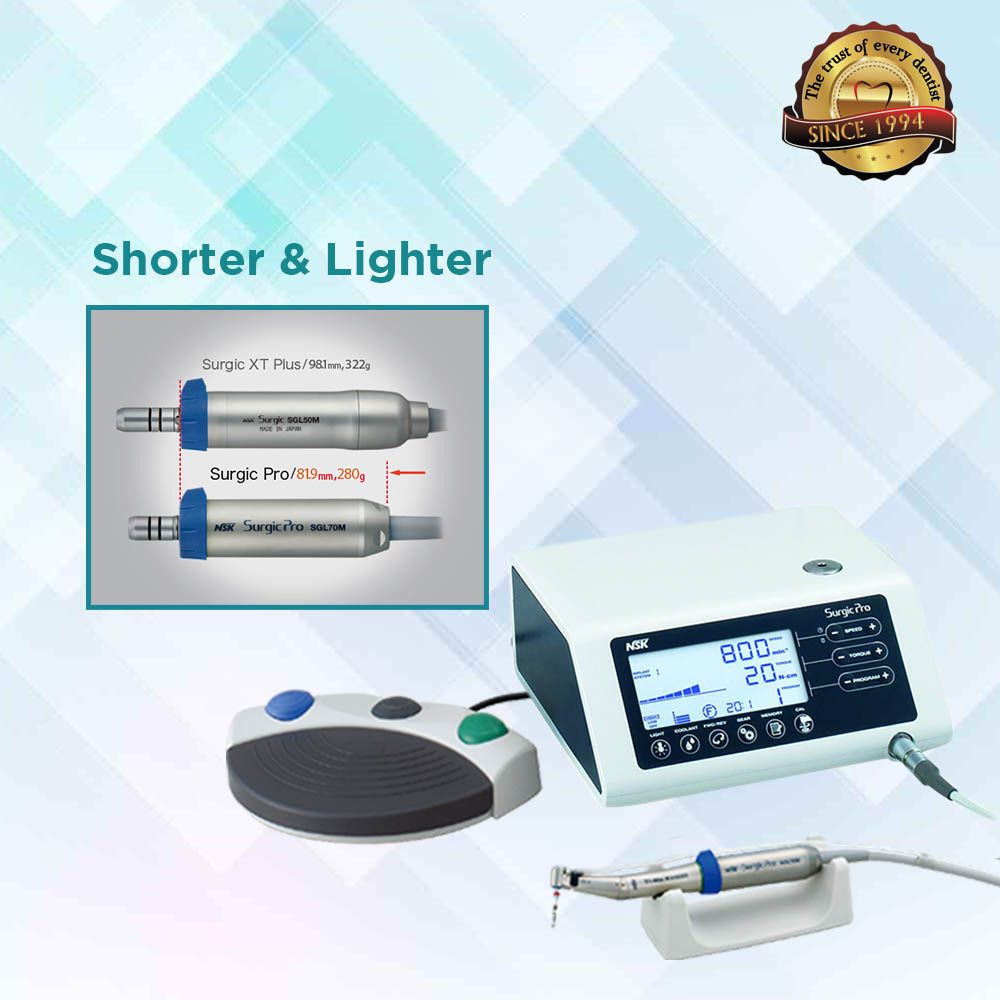

  • NSK Surgic-Pro implant motor is small and lightweight equipment.
  • The touch control panel includes a large LCD backlight with high visibility.
  • NSK LEDs produce natural daylight quality light to illuminate the treatment area
  • The lights increase security and they do not heat up and are long lasting.
  • Memorises eight different implant systems. The Surgic-Pro stores eight separate implant systems and a total of 64 programs. This is particularly helpful when using two or more brands of implants.
  • The proprietary Advanced Handpiece Calibration (AHC) from NSK  guarantees the right torque value required for particular treatments.
  • Both Optic/Nonoptic Handpiece as per requirement.
  • Up to 80 Ncm powerful torque.
  • Illuminated display for greater visibility.

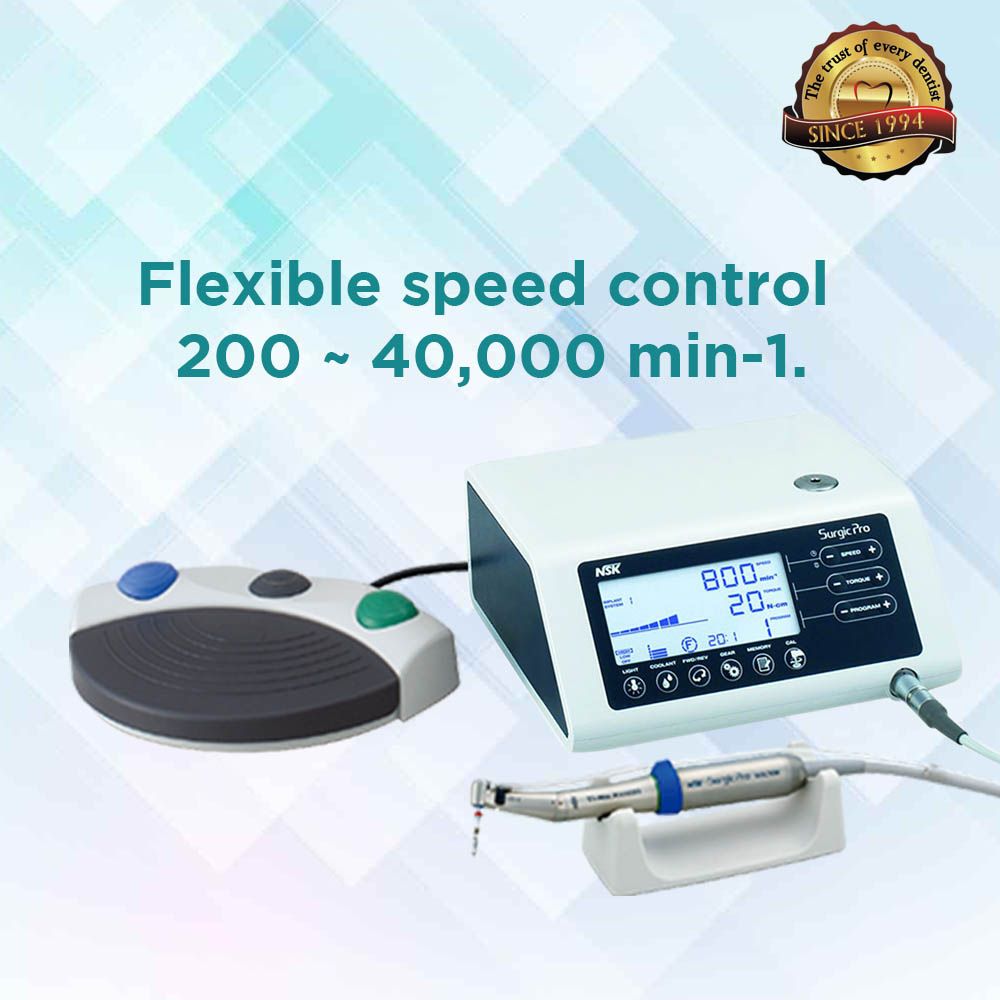

  • Flexible speed control between 200 ~ 40,000 min-1.

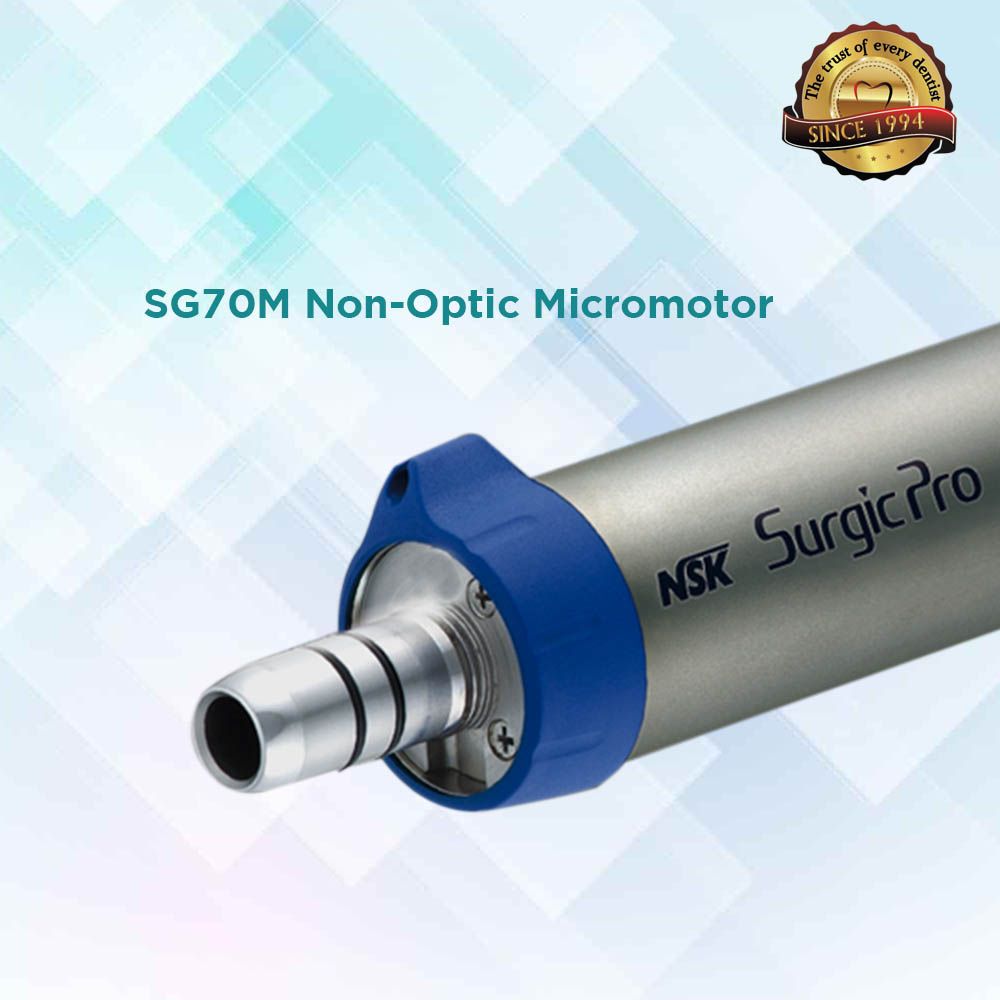

  • Optic / Non-Optic Brushless micromotor with the lowest noise and vibration level.
  • User-friendly simple operation.
  • Up to 8 User-programmable preset memories.

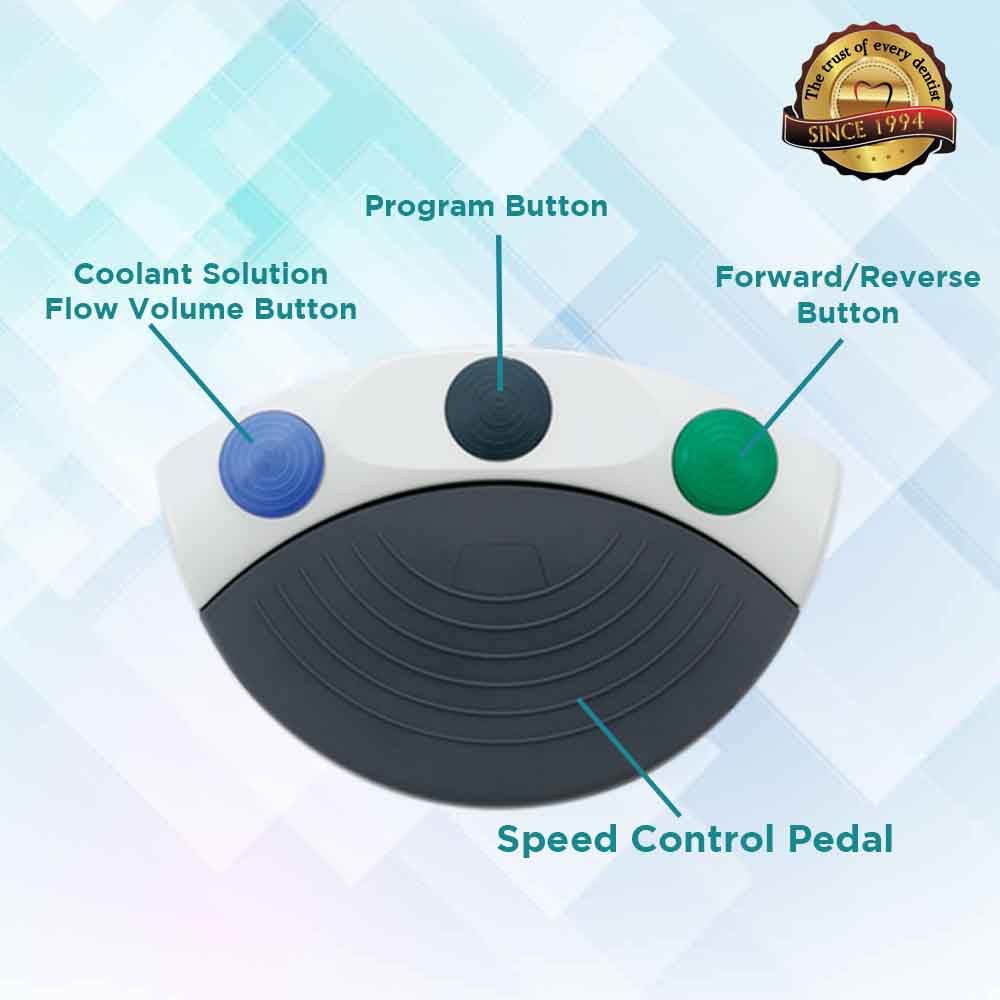

  • Hands-free operation via a foot control unit.
  • Powered with advanced handpiece calibration.
  • Autoclavable handpiece.

Technical Specification:

  • 8 x 8 Implant programs.
  • Light power: Over 32,000 LUX (LED Micromotor).
  • Max. output / Max. Torque: 210 W / 80 Ncm.
  • Power supply: AC120V / 230V, 50 / 60 Hz.
  • Max. pump output: 75 mL/ min.
  • Dimensions: W265 x D220 x H100 (mm).
  • With an SG20 handpiece (Non-Optic).
  • X-SG20L handpiece (Optic).

Instructions of NSK Surgic AP :

Attach the power cable to the backside of the device and the foot control cable. Link the motor to the cord by matching the red dot on the unit with the main unit. On the given notch, position the saline holder and attach the saline container. Connect the handpiece via the external pump with the motor and the saline irrigation tubing with the handpiece. Turn on the device now. Pick the software, adjust the implant system's speed and torque (IF REQUIRED), mount the drill, and now the device is ready for the implant procedure.
