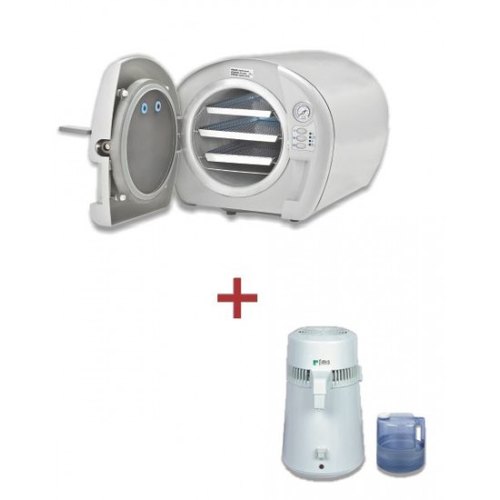

Gnatus Bioclave N-Class Front Loading Autoclave - 21 L with Water Distiller

• N class autoclave with the dry cycle for dryer solid unwrapped instruments to use.
• Glass wool internal thermal insulation prevents loss of heat during the sterilization cycle.
• Thermo-switch to prevent the excess elevation of temperature within the chamber.

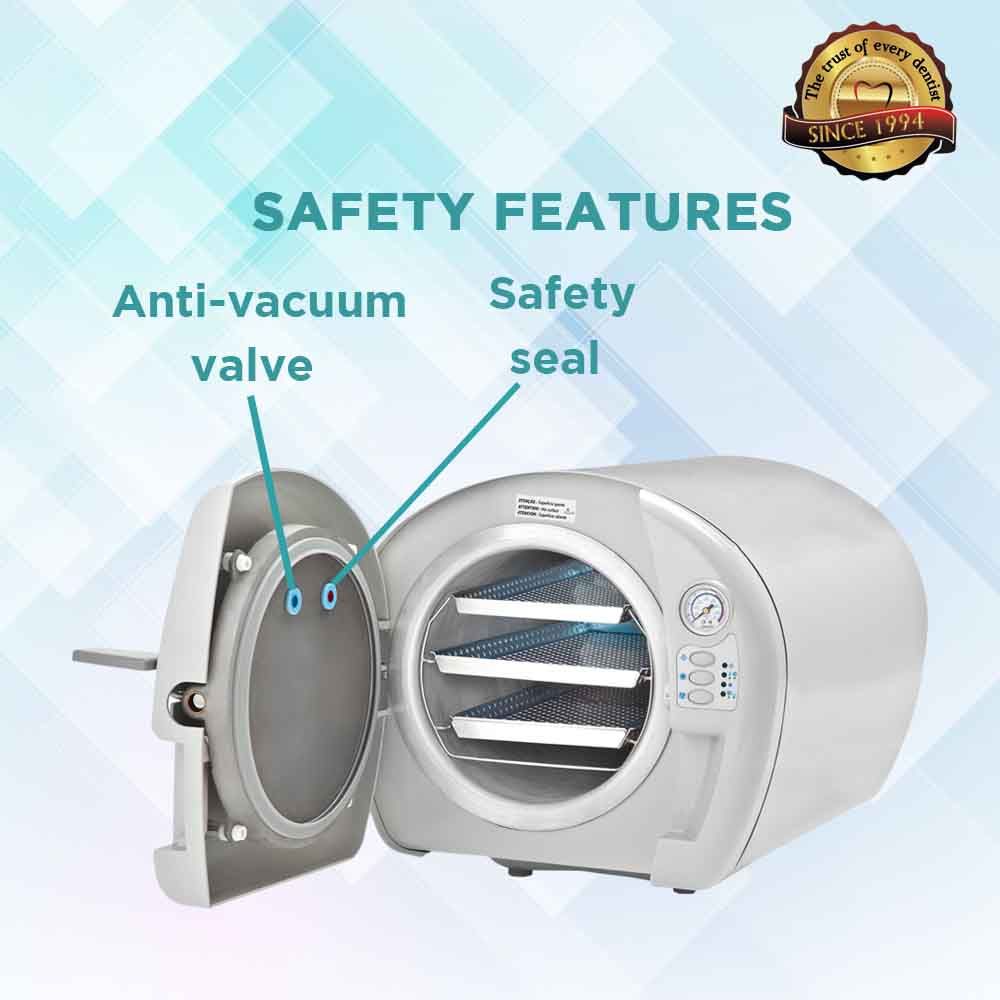

• The safety system against accidental door opening makes it secure to use.
• Automatic deaeration for uniform & constant temperature inside the chamber during the sterilization cycle.

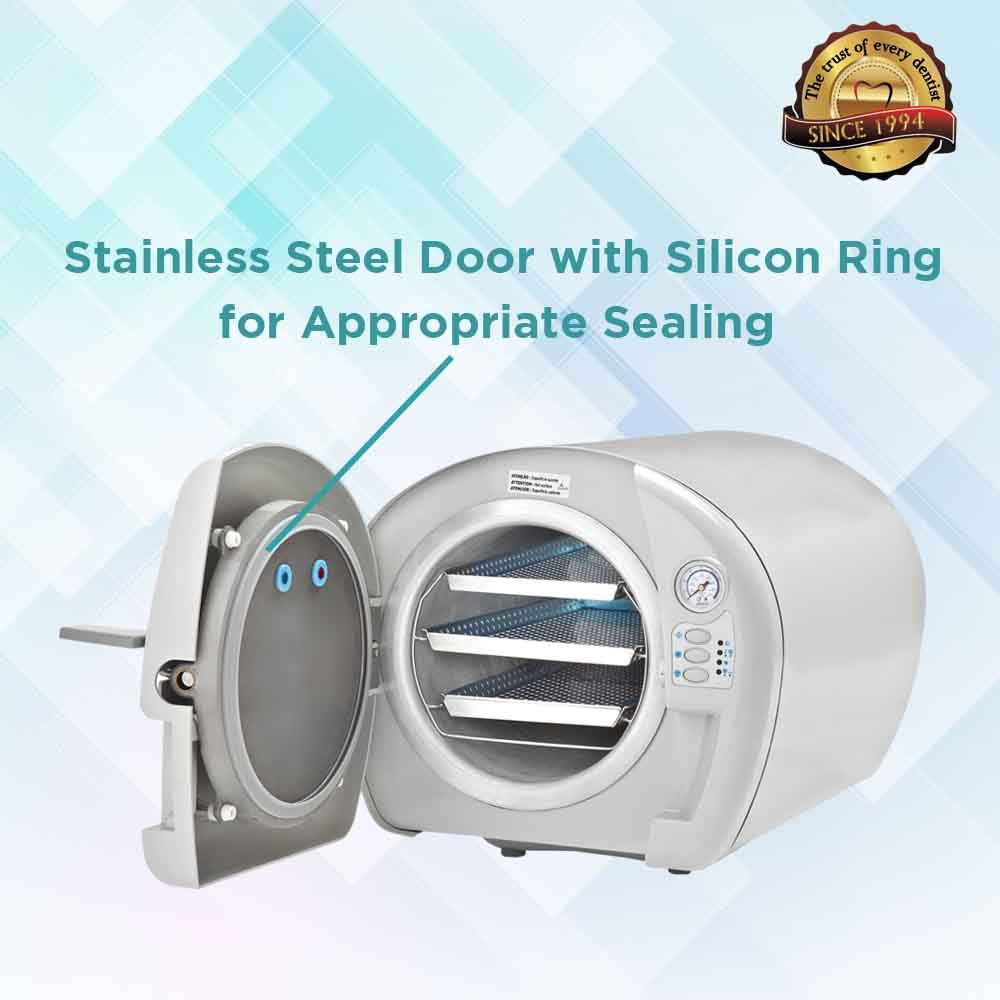

• Silicon ring in the door with great flexibility and heat resistance ensures proper sealing of the door during the sterilization cycle.
• Injected aluminum coated stainless steel door with SS304 quality stainless steel keeps it rustproof and makes it durable.

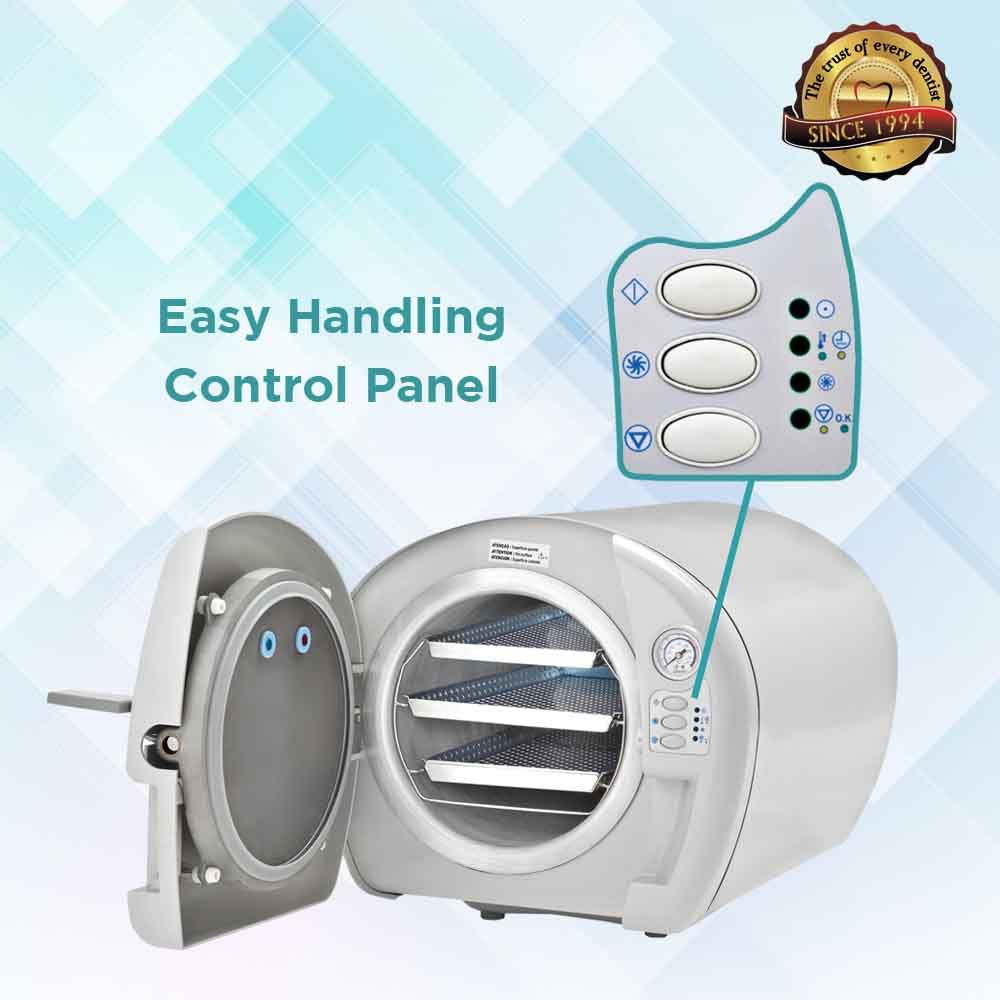

• The simple control panel makes it easy to operate.
• Free water distiller
• 1-year warranty

Specifications:-

• Capacity- 21L
• Operation Temperature- 128ºC ±5 (123 to 133ºC)
• Chamber’s Depth- 45 cm
• Dimension - 43.5 cm width x 41.0 height x 58.0 cm deep
• Water consumption- 350 - 380ml
• Net weight- 30 Kg
• Sterilization Time- 16 minutes
• Complete cycle- 60 minutes
• Drying Time- 30 minutes

Instructions of Gnatus Bioclave:

• Connect the energy plug to the socket.
• Raise the door latch; push it to the left and open.
• Pour 350ml of distilled water into the chamber using a dosing cup.
• Put unwrapped solid instruments on the tray and place them inside the autoclave.
• Close the autoclave door for the sterilization process to start.
• For drying mode, the autoclave door must be kept ajar and during this time touching inside the chamber is prohibited to avoid unwanted accidents or burns.
• After drying mode, 3 beeps will be emitted and a green indicator will be on.
• Then the instrument's trays can be removed from the chamber using a tray holder.
